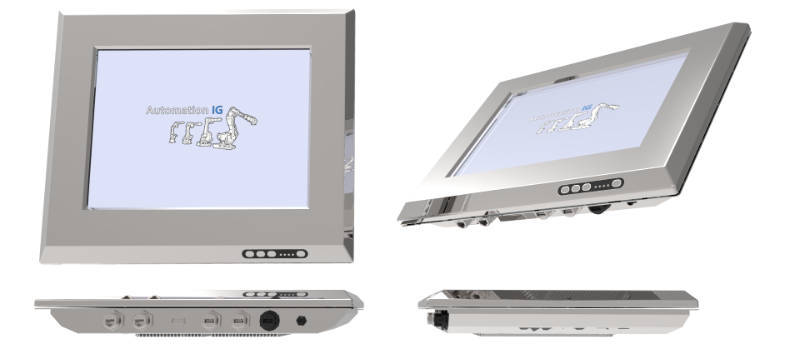

The latest 15 inch OI screen features a dual-core Intel Atom processor and a 15" 1024x768 display. This screen is available with embedded OI runtime, or with a blank Windows 7 Embedded Standard installation.
Feature | OI-15 |
---|---|
Display Size |
15" Diagonal |
Aspect Ratio |
4:3 |
Display Colors |
16.7 Million |
Backlight |
LED, Lifespan > 50,000h @ 25c |
Supported OS |
Windows 10 IOT LTSB, Linux |
CPU |
Intel Atom E3845 |
RAM |
8gb DDR3L 1333 SDRAM |
CF Flash |
2gb |
SSD Storage |
512gb SATA II |
Graphics |
Intel® HD Graphics Ver. 10.18.10.3925 |
Video Memory |
256mb |
Native Resolution |
1024x768 (XGA) |
Touch Panel Type |
Projected Capacitive, 5 simultaneous touch |
Touch Panel Impact Strength |
IK09 |
IO: Serial |
RS-232C/422/485 (D-Sub 9-pin) |
IO: Eth1 |
10/100/1000 Mbit/s RJ45 |
IO: Eth2 |
10/100/1000 Mbit/s RJ45 |
IO: USB1 |
USB 2.0 |
IO: USB2 |
USB 2.0 |
IO: USB3 |
USB 2.0 |
Input Voltage |
12-36v dc |
Power Consumption |
0.760a @ 24v |
Max Load |
1.12a @ 24v |
Inrush Current |
0.955a @ 24v |
Operating Temperature |
0 ~ 40°C (32 ~ 104°F) |
Storage Temperature |
-10 ~ 60°C (14 ~ 140°F) |
Operating Humidity |
5% ~ 90% Relative Humidity, Non-condensing |
Storage Humidity |
50(20°C) to 95(60°C) % RH |
Vibration Resistance |
1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz,30min/axis |
Mechanical Shock Test |
10Grms, IEC 60068-2-27, Half Sine, 11ms |
Drop Test |
EC-60068-2-32 (96.5cm) |
Electromagnetic Compatibility (EMC) |
Immune to high frequency interference electromagnetic emissions class A |
EMI |
CE, FCC Class A |
IP Rating |
Full IP65 |
Installation |
75mm and 100mm VESA pattern |
Cooling |
Passive |
Weight |
6.42kg |
External Dimensions |
371 x 433 x 63.6 mm |
Panel Cut Dimensions |
332 x 415 mm |
