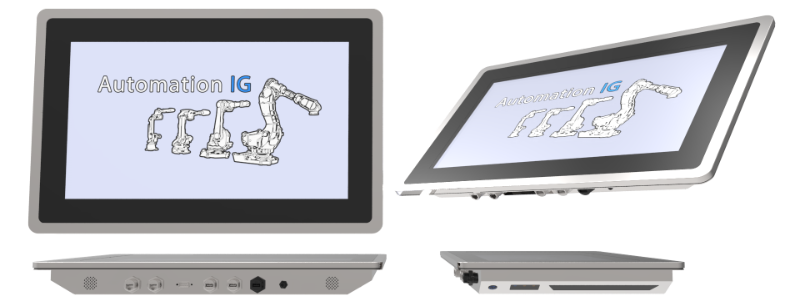

OI 21
The latest OI features a 21" 1080p display and an Intel N4200 processor. This screen is available with embedded OI HMI runtime, or with Windows 10 IOT LTSB.
OI-21 features an IK10 rated touchpad which provides unparalleled durability.
Specifications
| Display Size | 21" Diagonal |
|---|---|
Aspect Ratio |
16:9 |
Display Colors |
16.7 Million |
Backlight |
LED, Lifespan > 50,000h @ 25c |
Supported OS |
Windows 10 IOT LTSB, Linux |
CPU |
Intel N4200 |
RAM |
8gb DDR3L 1866MTs |
M.2 |
32gb MLC |
SSD Storage |
512gb SATA III |
Graphics |
Intel® HD Graphics Ver. 21.20.16.4534 |
Video Memory |
256mb |
Native Resolution |
1920x1080 (FHD) |
Touch Panel Type |
Projected Capacitive, 5 simultaneous touch |
Touch Panel Impact Strength |
IK10 |
IO: Serial |
RS-232C/422/485 (D-Sub 9-pin) |
IO: Eth1 |
10/100/1000 Mbit/s RJ45 |
IO: Eth2 |
10/100/1000 Mbit/s RJ45 |
IO: USB1 |
USB 2.0 |
IO: USB2 |
USB 2.0 |
IO: USB3 |
USB 2.0 |
Input Voltage |
12-36v dc |
Power Consumption |
1.06a @ 24v |
Max Load |
1.68a @ 24v |
Inrush Current |
1.51a @ 24v |
Operating Temperature |
0 ~ 40°C (32 ~ 104°F) |
Storage Temperature |
-10 ~ 50°C (14 ~ 122°F) |
Operating Humidity |
5% ~ 90% Relative Humidity, Non-condensing |
Storage Humidity |
50(20°C) to 95(60°C) % RH |
Vibration Resistance |
1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz,30min/axis |
Mechanical Shock Test |
10Grms, IEC 60068-2-27, Half Sine, 11ms |
Drop Test |
EC-60068-2-32 (96.5cm) |
Electromagnetic Compatibility (EMC) |
Immune to high frequency interference electromagnetic emissions class A |
EMI |
CE, FCC Class B |
IP Rating |
Full IP65 |
Installation |
75mm and 100mm VESA pattern |
Cooling |
Passive |
Weight |
9kg |
External Dimensions |
595 x 386 x 62 mm |
Panel Cut Dimensions |
557 x 326 mm |
