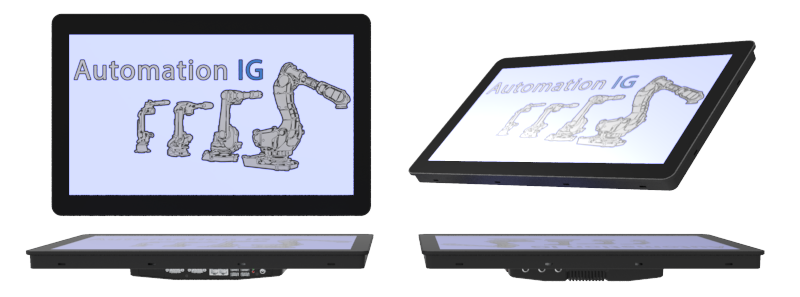

OI 21 Monitor
OI-21 Monitor is a display and touchscreen only solution for industrial HMI and SCADA applications.
Equipped with the same IK10 rated touchpad, the OI-21m is an industry leading solution for machine interfaces.
Specifications
| Feature | OI-21 Monitor |
|---|---|
Display Size |
21" Diagonal |
Aspect Ratio |
16:9 |
Display Colors |
16.7 Million |
Backlight |
LED, Lifespan > 50,000h @ 25c |
Native Resolution |
1920x1080 (1080p) |
Touch Panel Type |
Projected Capacitive, 5 simultaneous touch |
Touch Panel Impact Strength |
IK10 |
IO |
DVI, HDMI, DP, VGA, USB (touch) |
Input Voltage |
12-36vdc |
Operating Temperature |
Normal Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
Storage Temperature |
Normal Temperature: -20°C ~ 60°C (-4°F ~ 140°F) |
Operating Humidity |
0% ~ 90% Relative Humidity, Non-condensing |
Storage Humidity |
50(20°C) to 95(60°C) % RH |
Electromagnetic Compatibility (EMC) |
Immune to high frequency interference electromagnetic emissions class A |
IP Rating |
IP65 Front |
Installation |
75mm and 100mm VESA pattern |
Cooling |
Passive |
Weight |
3.7kg |
External Dimensions |
563.5 x 354.5 x 60 mm |
Panel Cut Dimensions |
552 x 342 mm |
